Universal - Power Disk
Mechanically driven in the row power disk implement. Operates using tractor PTO driveline. On-board hydraulic oil pump/tank to operate power disk head retraction. Hydraulic off-set allows the implement to reach under vines/tress.
Fully adjustable sensor rod. Standard 3-disk gang... expandable to 4 disks to cultivate 30" wide. Available in 7 model sizes to fit most vineyards and orchard configurations. Heavy duty design and construction ensure years of reliable service.
| MODEL |  WEIGHT |
 TRACTOR SIZE |
 DISKS |
A B |
 MIN/MAX REACH |
 DISKING WIDTH |
 ROW SPACING |
|---|---|---|---|---|---|---|---|
| Compact | 990 | 50 Hp | 3" x 15" | 39" 61" | 44" | 22" | 5-6' |
| Junior | 1,035 | 50Hp | 3" x 15" | 43" 65" | 48" | 22" | |
| Piccolo | 1,100 | 60Hp | 3" x 15" | 47" 69" | 50" | 22" | 6-8' |
| Medio | 1,210 | 60Hp | 3" x 15" | 55" 77" | 57" | 22" | 7-9' |
| Grande | 1,320 | 60Hp | 3" x 15" | 71" 93" | 71" | 22" | 8-10' |
| Magnum | 1,450 | 70HP | 3" x 15" | 79" 101" | 79" | 22" | 10-12' |
| Gigante | 1,600 | 70Hp | 3" x 15" | 98" 120" | 95" | 22" | 12'+ |
DIMS MIN/MAXFeatures for Universal - Power Disk

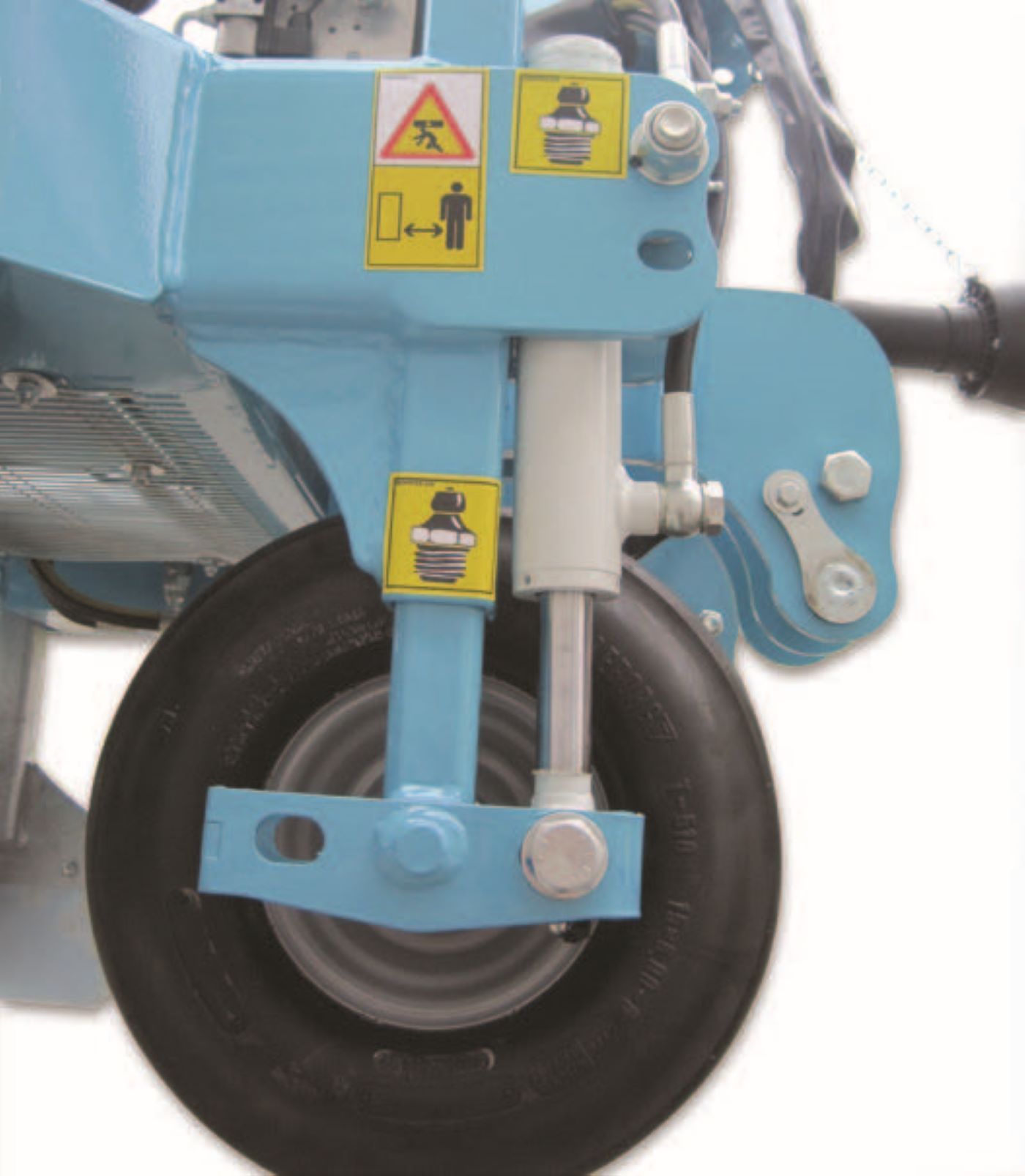

Hydraulically adjustable front wheel controls cultivating depth.
Belt driven-direct drive transmission to power disk head.
Available with 1,2, or 3 disk heads - Standard Disk Diameter = 38 cm(15").

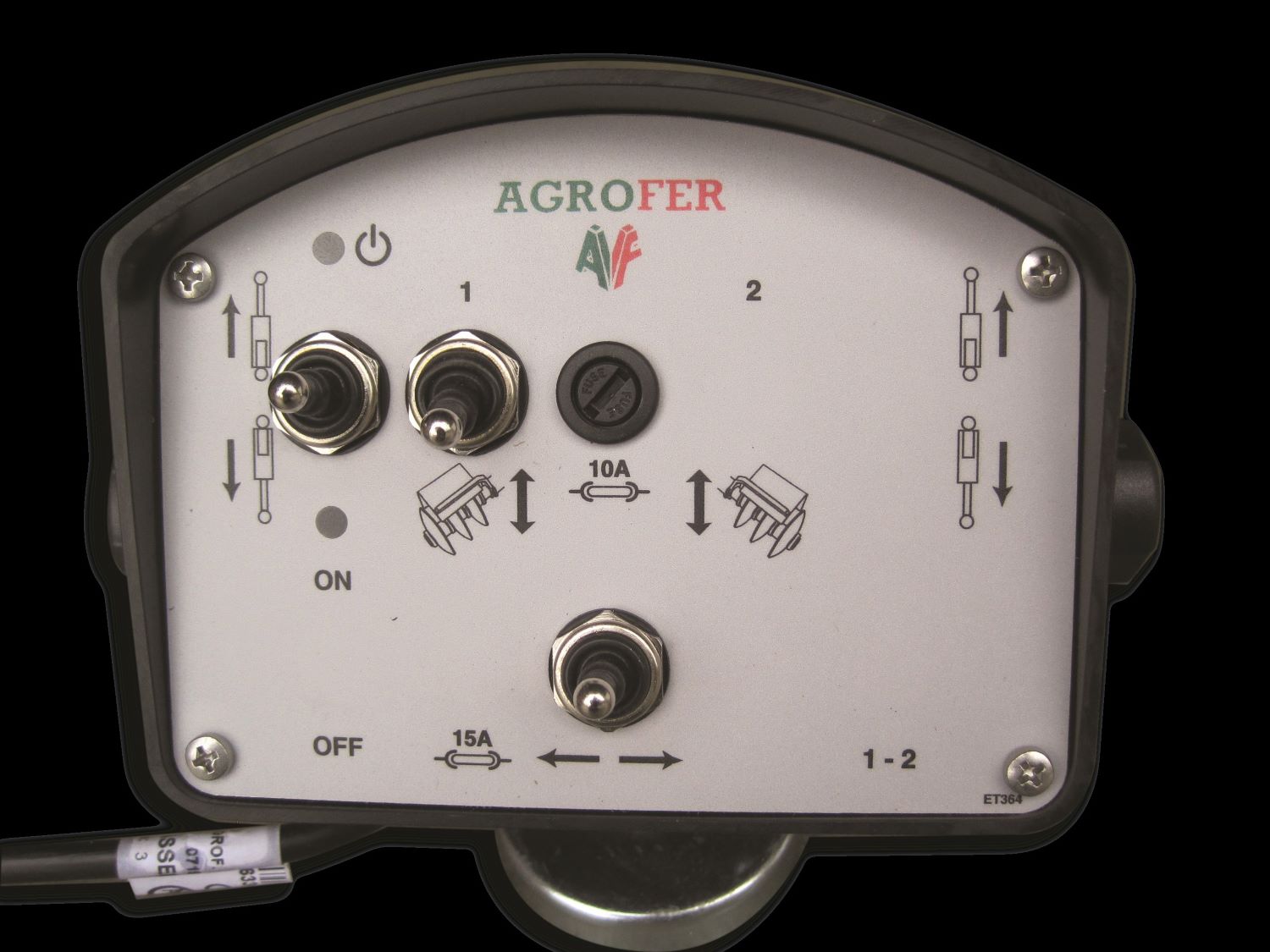

Remote control panel for operator's station, 12V power required.
