In-Row Weed Cutter
DB12
A unique in row implement which can eliminate weeds under the vine/tree row without cultivating or contacting the soil. Unit has a self-contained hydraulic system and does not utilize any hydraulic oil from tractor. Ideal for organically farmed vineyards or orchards.
Ideal unit for compact tractors from 18 Hp. Three model sizes to meet any row spacing from 4 feet and up, and plant spacing as narrow as 25 inches. Heavy duty all steel construction ensures many years of reliable and trouble-free service.
| Model |  Cutting Head Width |
 Tractor Size |
 Weight |
 Max Reach |
 Row Spacing |
|---|---|---|---|---|---|
| DB12/DTE-500 (Mini) | 22" | 30-80 Hp | 355 | 32" | 4-5' |
| DB12/DTE-501 (Medio) | 22" | 30-80 Hp | 420 | 37" | 6-8' |
| DB12/DTE-502 (Largo) | 22" | 30-80 Hp | 460 | 57" | 8-12'+ |
Features for In-Row Weed Cutter

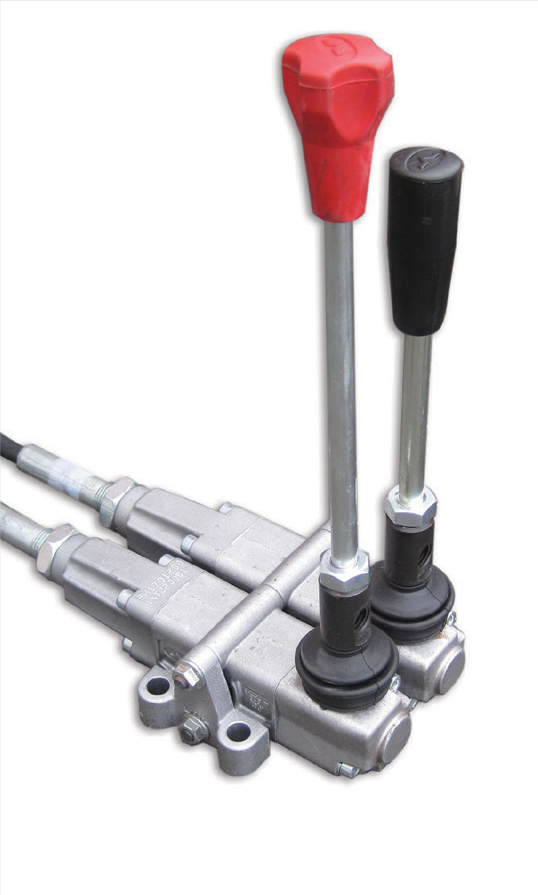

Dual Lever Controls—Cable operated control levers for mounting on tractor workstation.
Fully adjustable sensor rod with sensitivity spring control.

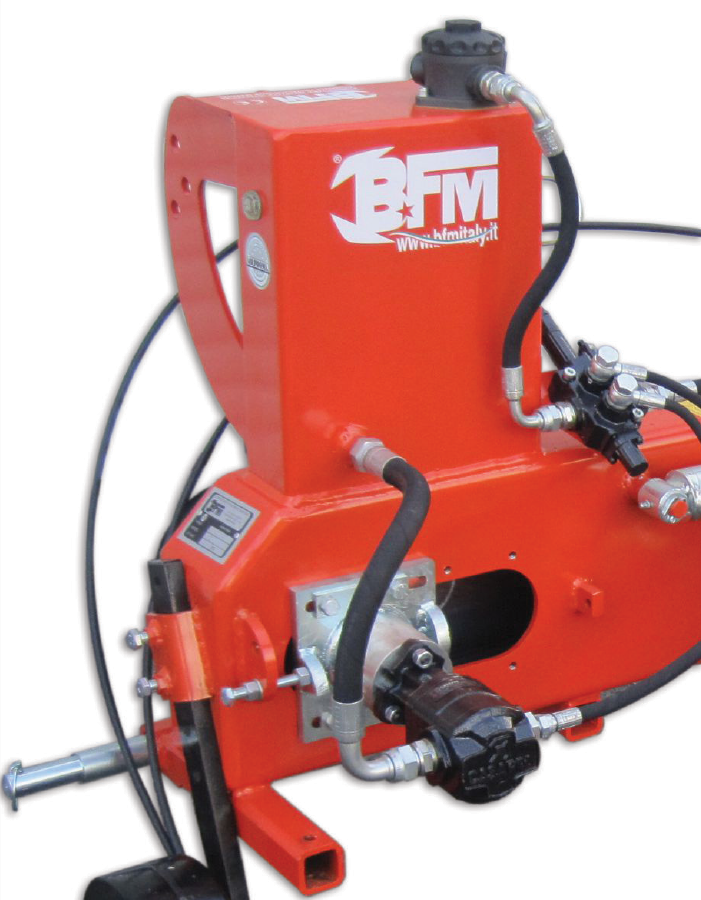

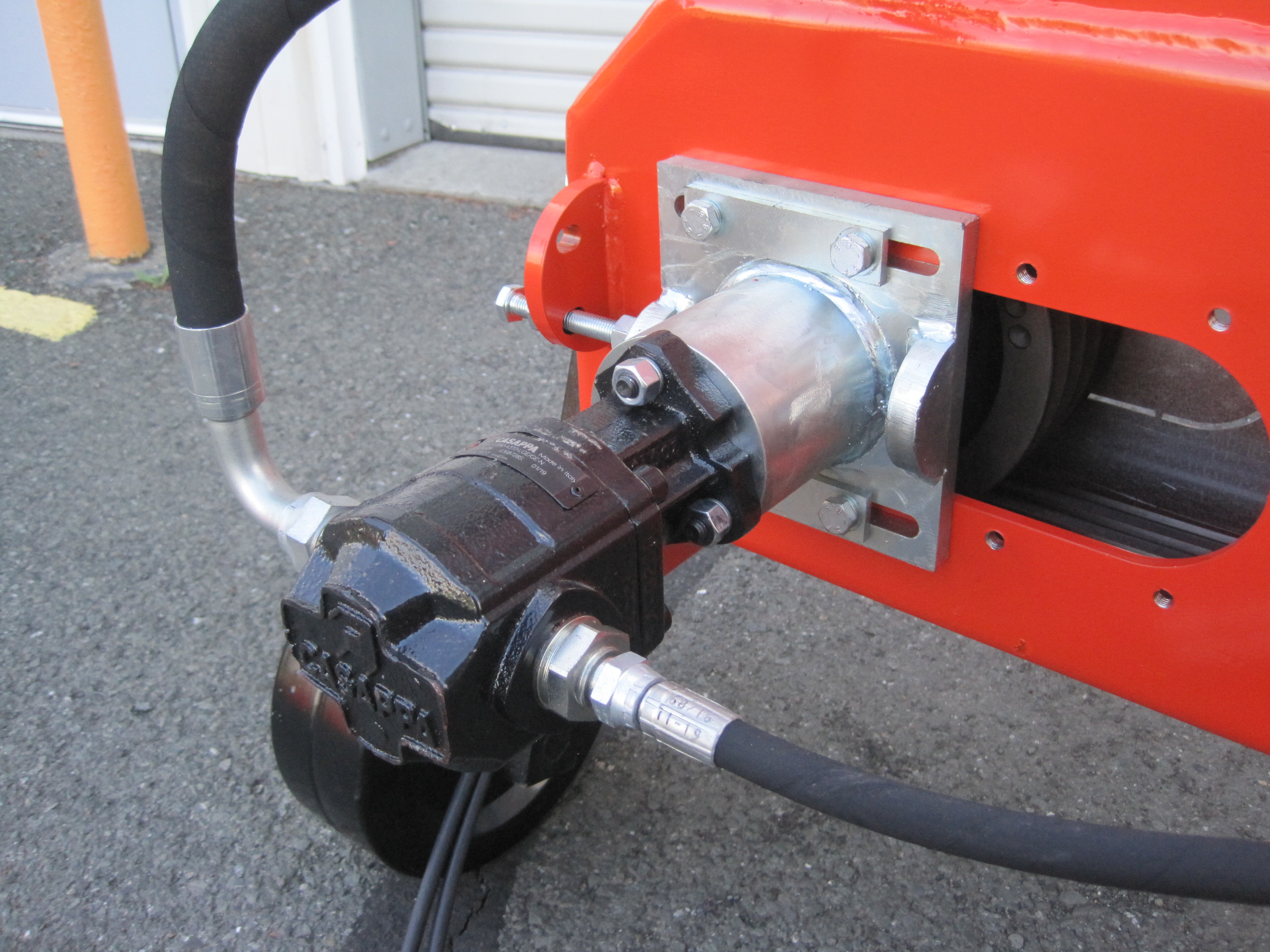

Fully self-contained hydraulic system (does not use any hydraulic oil from tractor).
