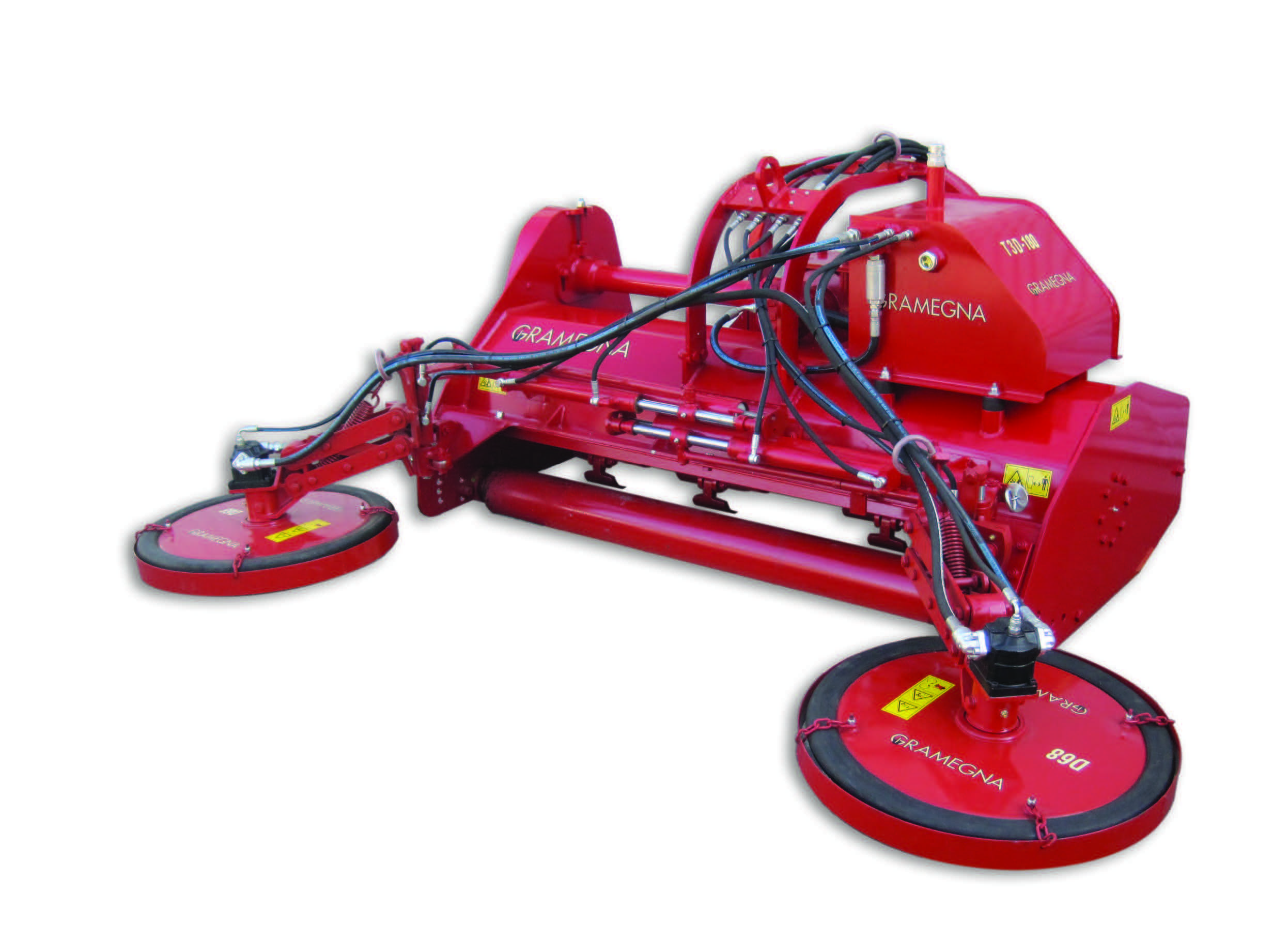

Flail Mower/shredder
T3D
Unique vineyard/orchard flail mower/shredder with in-the-row hydraulic cutting heads. Dual 26" in-row cutting heads can independently oscillate vertically to follow all types of terrain. Each side can be independently angled to +/- 15 degrees to work on slopes and slight terrace situations. Spring actuated cutting head gently rolls around vines and tree trunks. Rubber bumper ring on cutting heads protects vines/trees from damage.
Fully self-contained hydraulic oil pump and reservoir to operate in-row cutting head. Adjustable rear roller to control cutting height. Available in 4 model sizes to fit a wide range of vineyard/orchard row configurations. Equipped with standard flail hammers for fine shredding of vine/tree clippings/ Optional Y knives are available. Heavy duty construction and frame for many years of reliable service.
| MODEL |  WEIGHT |
 MIN/MAX WIDTH |
 TRACTOR SIZE |
 NR FLAILS |
 ROW SPACING |
|---|---|---|---|---|---|
| T3D-145 | 1,881 | 57-93" | 45-95 HP | 18 | 6-7' |
| T3D-165 | 1,991 | 65-100" | 45-95 HP | 18 | 7-8' |
| T3D-180 | 2,070 | 71-106" | 55-95 HP | 22 | 8' |
| T3D-200 | 2,180 | 79-114" | 55-95 HP | 22 | 8-9' |
Features for Flail Mower/shredder

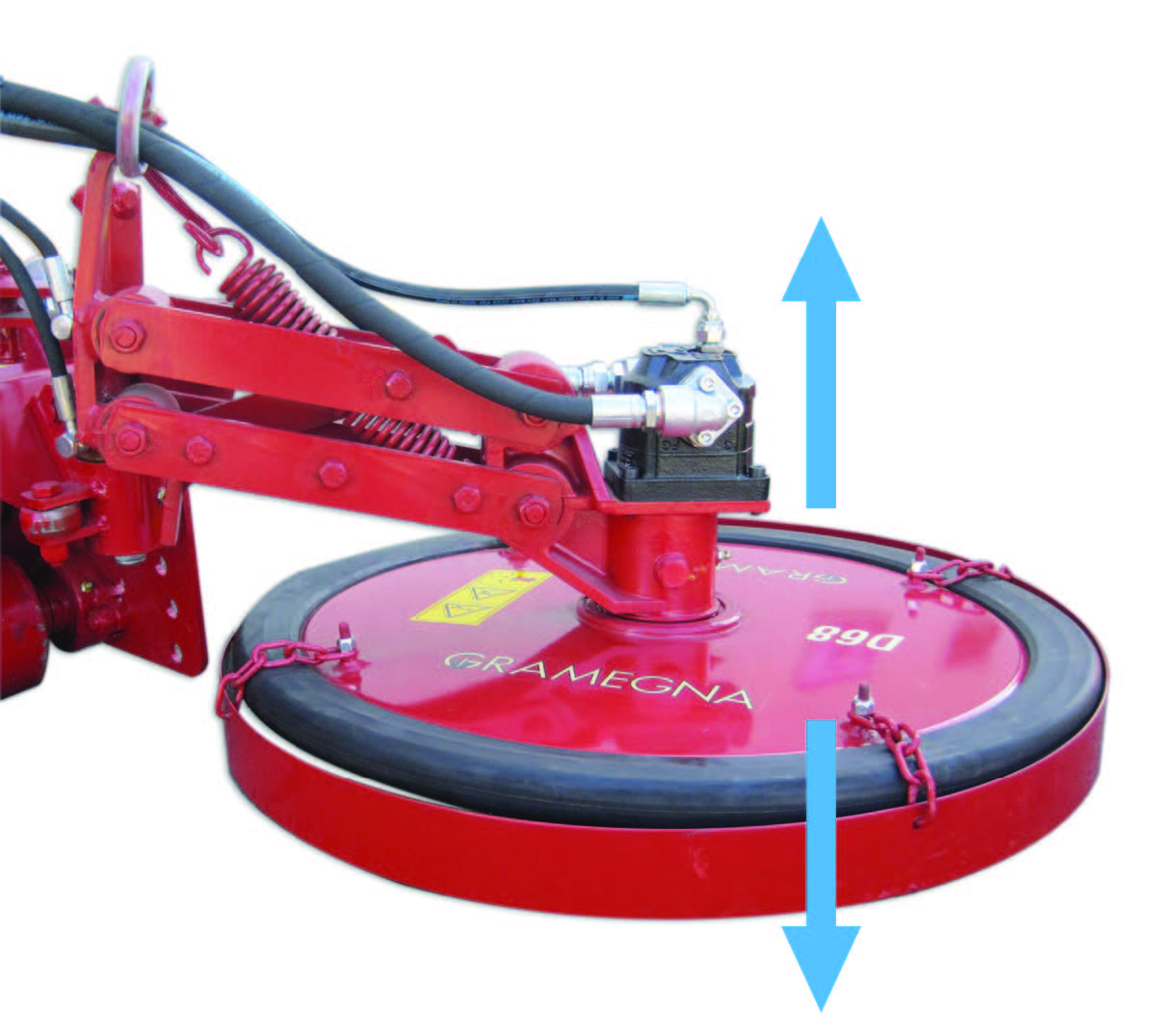

Cutting head can freely oscillate vertically to follow soil contour and terrain

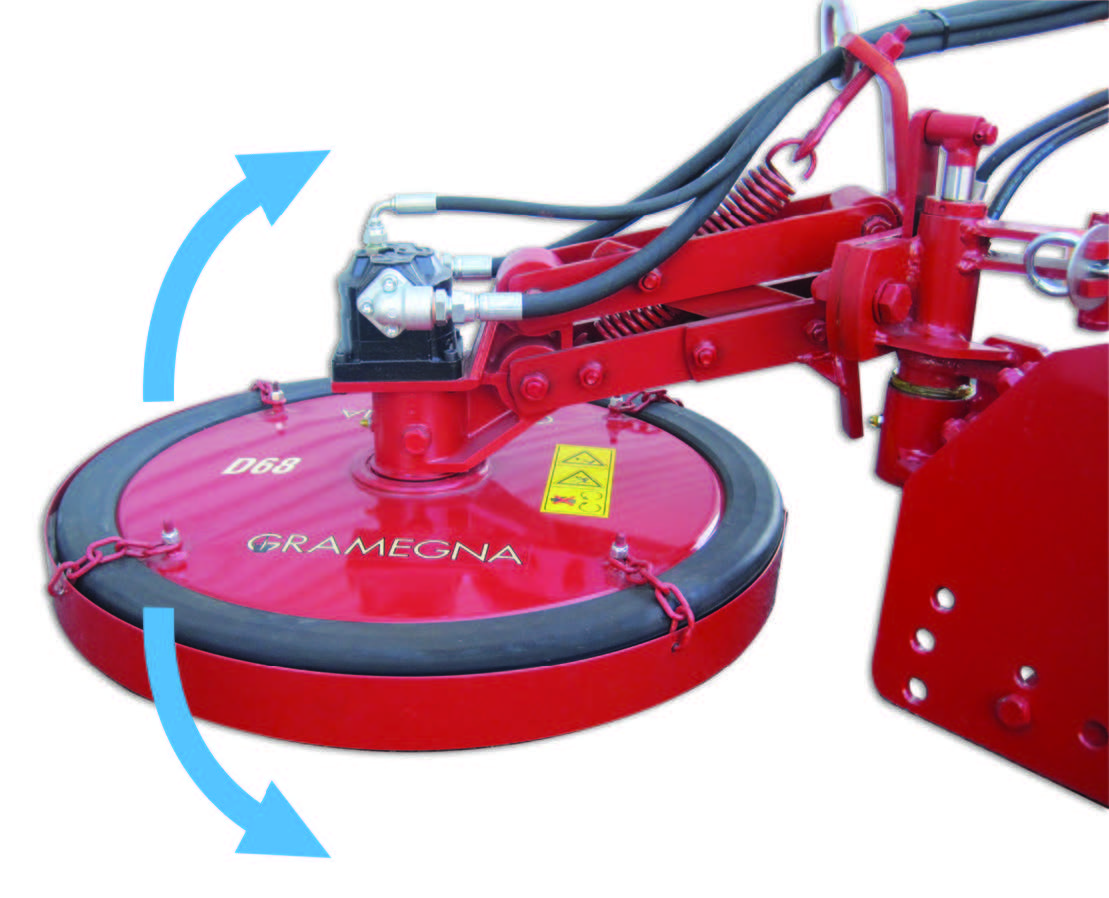

Cutting head can be hydraulically angled using tractor's remote valve to work on slopes and slight terraces
