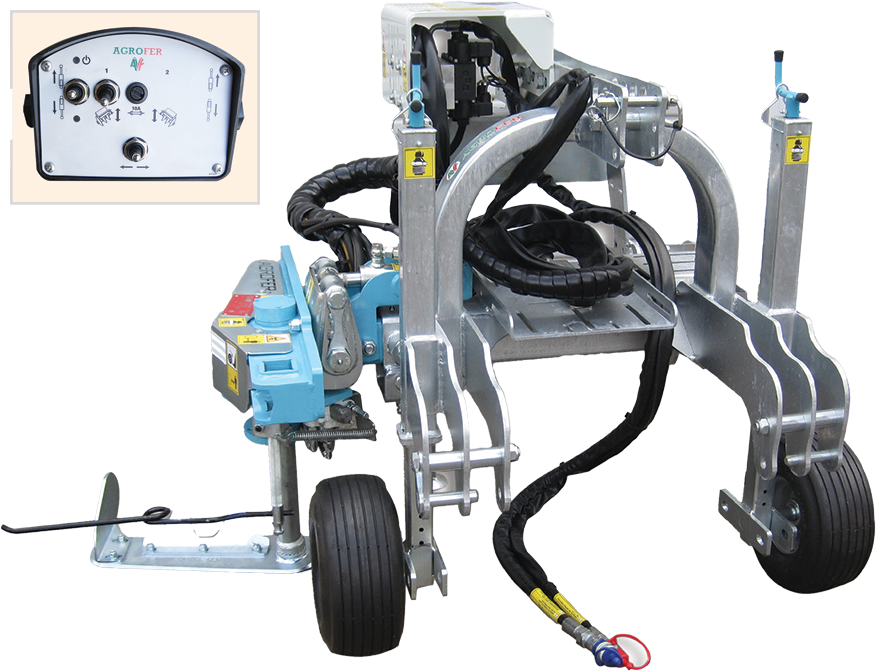

Export In-Row Weed Knife
DX
Single-sided in-row weed knife with reversible 3-pt linkage frame. Base model operates using 3 hydraulic remote valves from tractor (min 6.5 GPM). 2 pneumatic wheels adjust cutting depth. Single button control box recalls knife blade from tractor seat.
Heavy duty design & construction. Fully adjustable sensor rod. Double-acting hydraulic piston moves weed knife in/out of plant row. Cultivating head can be angled +/-15° to follow terrain. 4 model sizes to fit most vineyard/orchard row spacings.
| Model |  Weight |
A1 A2 |
B1 B2 |
 Tractor Size |
 Working Depth |
 Row Spacing |
|---|---|---|---|---|---|---|
| Compact* | 690 | 40" 36" | 52" 48" | 30-60HP | 3-6" | 5-7' |
| Piccolo | 735 | 48" 41" | 64" 57" | 40-70HP | 3-6" | 6-8' |
| Medio | 865 | 57" 52" | 75" 70" | 50-90HP | 3-6" | 8-12' |
| Grande | 1,050 | 65" 58" | 85" 78" | 50-90HP | 3-6" | 10'+ |
Min Width/Reach
Max Width/Reach
*Note: Available in only rear mounted 3-point attachment
MODEL CONFIGURATIONS
ECO |
TOP |
PREMIUM |
|---|---|---|
| Requires three (3) hydraulic remote valves from tractor. 1 Valve to open/close frame, 1 valve to angle weed knife and 1 valve to operate retraction of weed knife. Equipped with single button control box to recall weed knife in an emergency. | Factory installed hydraulic oil pump and oil from tractor. Includes heavy duty PTO driveline. All unit functions controlled by electrohydraulic control panel. | Factory installed hydraulic oil pumps (2) / oil tank . oil cooler with fan. Unit does not use any hydraulic oil from tractor. Equipped to handle hydraulic-driven cultivating tools. Includes heavy duty PTO driveline. All unit functions controlled by electrohydraulic control panel. |
Options for Export In-Row Weed Knife
 |
 |

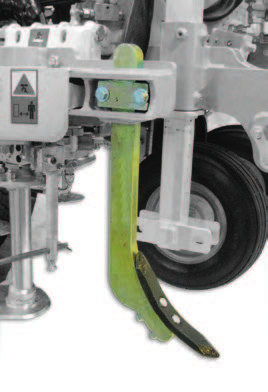

| 16 or 28" Knife Blade | Ripper/Chisel Shank |
Available on all models
 |
 |
| Culter Wheel (Smooth) | Culter Wheel (Toothed) |
Available on all models
 |
 |
| KULT Weed Star | Rollacker Weeder |
Available on all models
 |
 |
 |

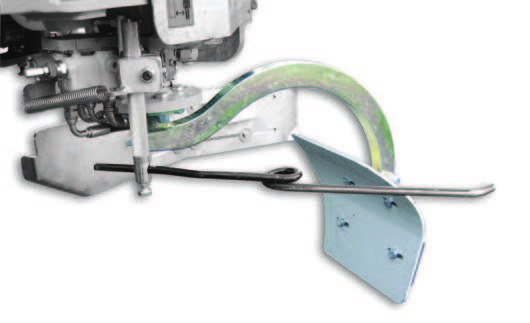

| In-Row Hoe Plow | Rear Soil Deflector | Trunk Cleaning Tool |
Available on all models
 |
| Weeder Brush |
Premium model only
 |
| Rotating Harrow |
Premium model only
 |
| Power Disk Blades |
Premium model only
 |

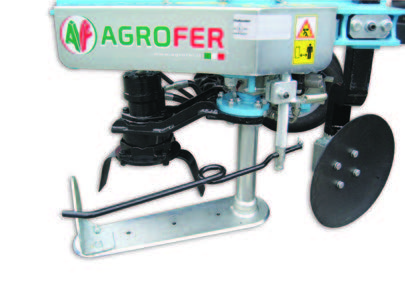

| Mini Power Harrow |
Premium model only
