In-Row Power Harrow
CS4
A unique power harrow designed to cultivate the soil between plants in the row of a vineyard/ orchard. Heavy duty all steel design ensures many years of reliable service. Fully mechanical operation of tiller head using tractor PTO. Adjustable sensor rod to cultivate as close to the plant as possible.
Hydraulically actuated inclination of tiller head allows implement to operate on hillsides or in terraced vineyards/orchards (except CS4-75 model). Available with 18" or 24" cultivation width (depending on model). Six model sizes to fit most vineyard/orchard row spacings. Heavy duty all steel design ensures many years of reliable service.
| Model |  Weight |

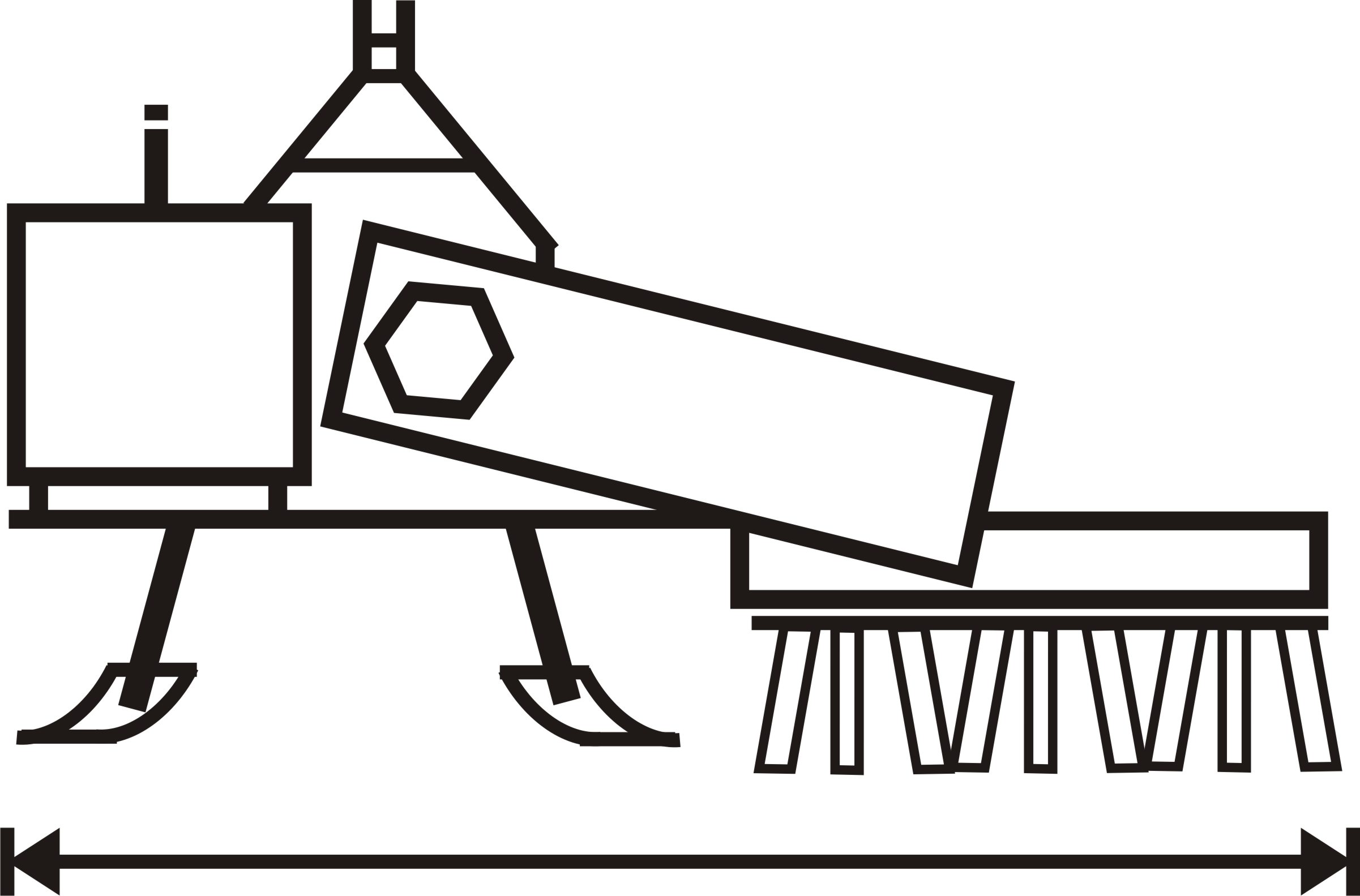

 MAX WIDTH |

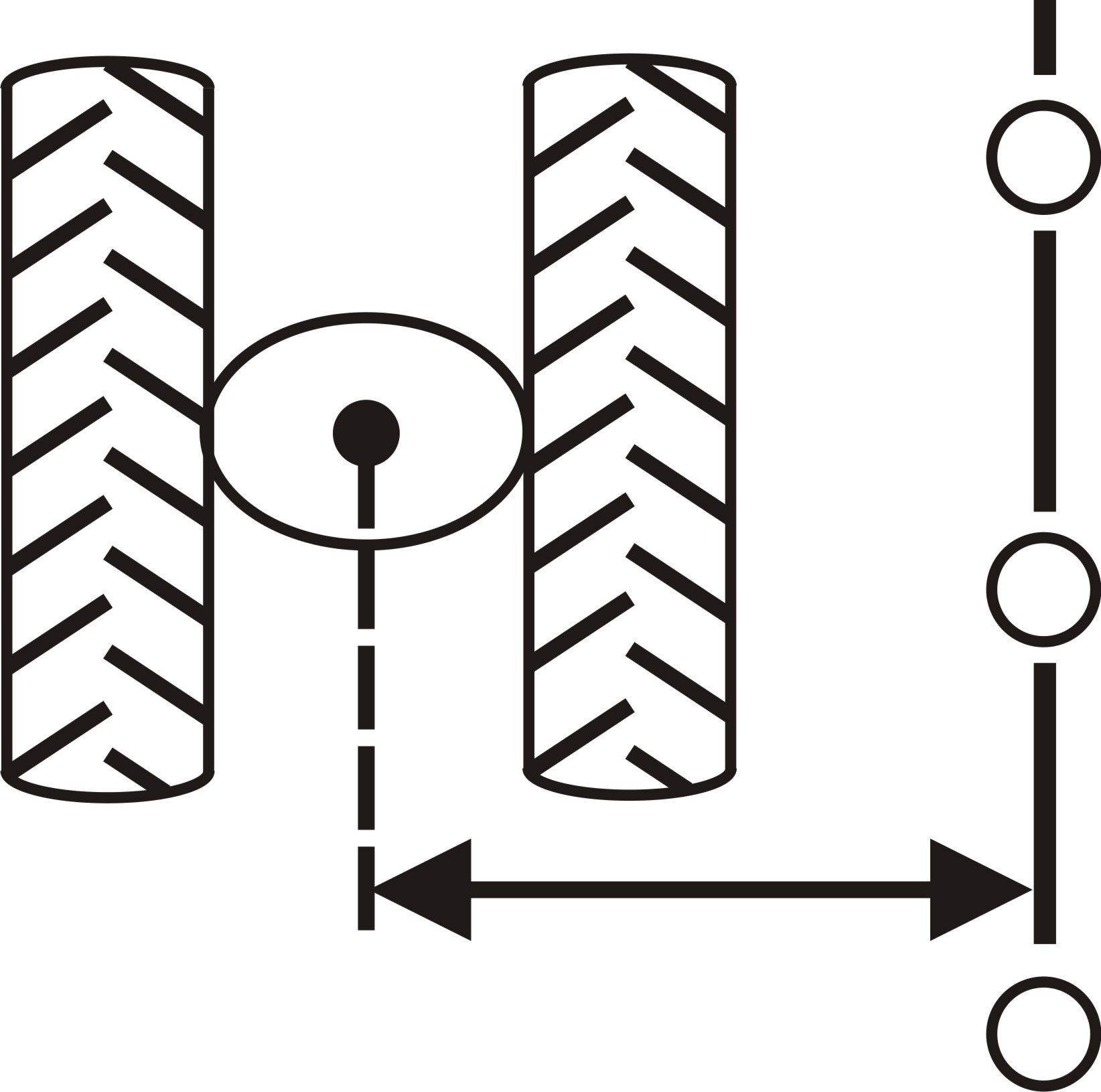

 MAX REACH |

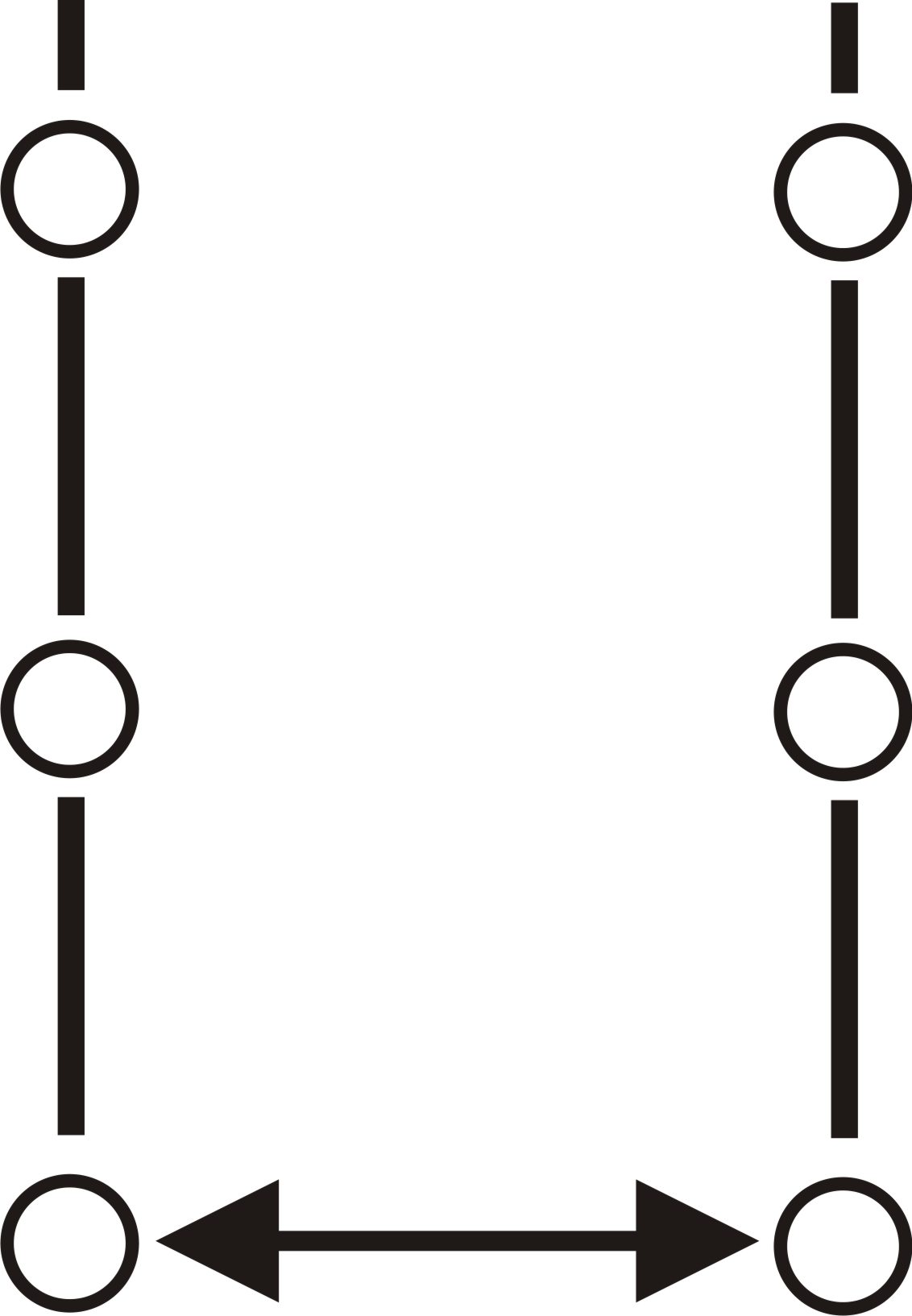

 ROW SPACING |
 CULTIVATING WIDTH |
 NR. BLADES |
 Tractor Size |

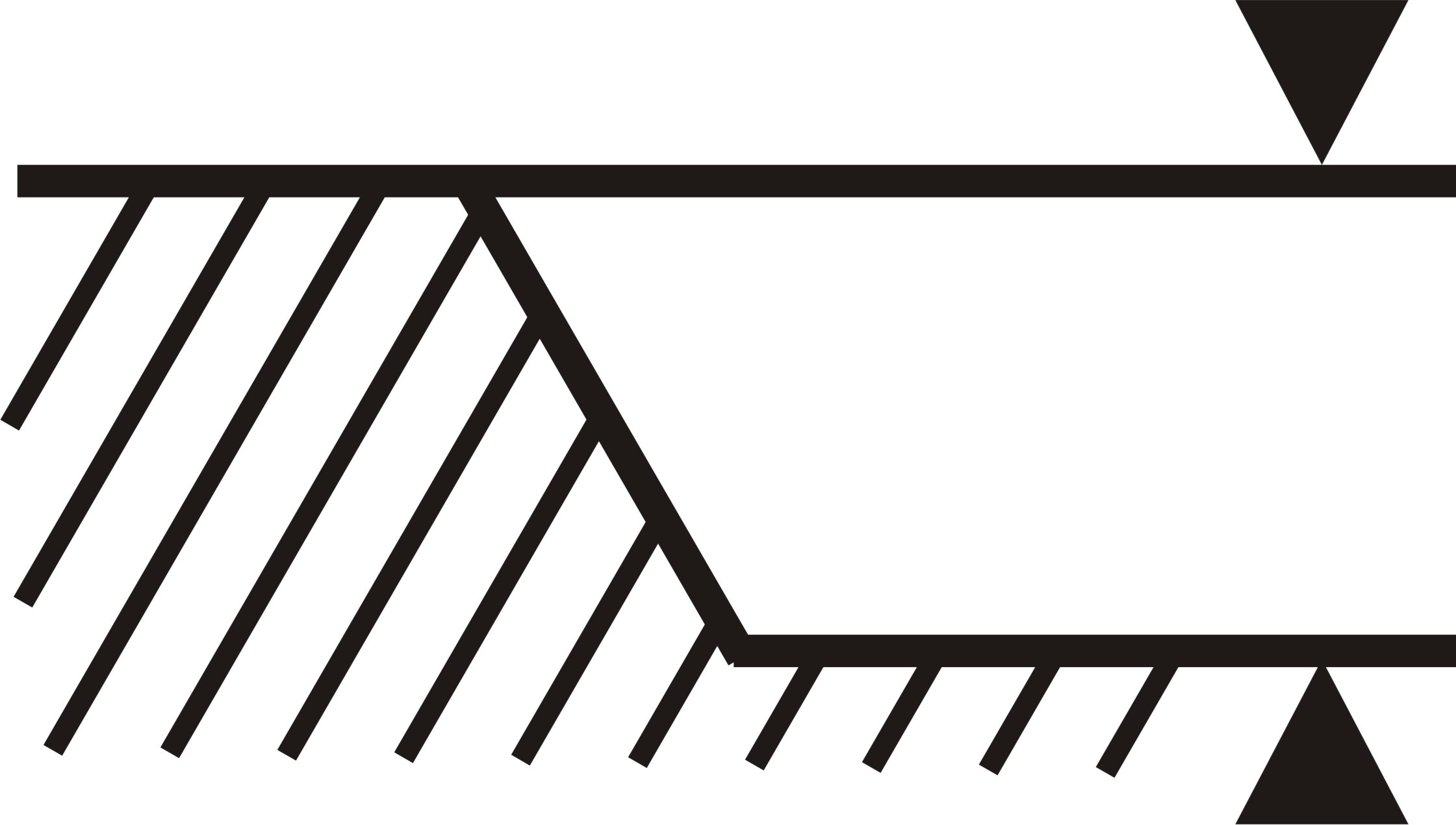

 working deptch |
|---|---|---|---|---|---|---|---|---|
| CS4-75 | 750 | 41" | 29" | 4-5' | 18" | 6 | 35-70 Hp | 4-5" |
| CS4-90 | 816 | 47" | 38" | 5-6' | 18" | 6 | 35-70 Hp | 4-5" |
| CS4-100 | 816 | 53" | 40" | 6-7' | 18" | 6 | 35-70 Hp | 4-5" |
| CS4-120 | 826 | 61" | 48" | 7-8' | 24" | 9 | 35-70 Hp | 4-5" |
| CS4-145 | 864 | 70" | 57" | 8-10' | 24" | 9 | 45-80 Hp | 4-5" |
| CS4-170 | 915 | 81" | 67" | 10'+ | 24" | 9 | 45-80 Hp | 4-5" |
Features for In-Row Power Harrow

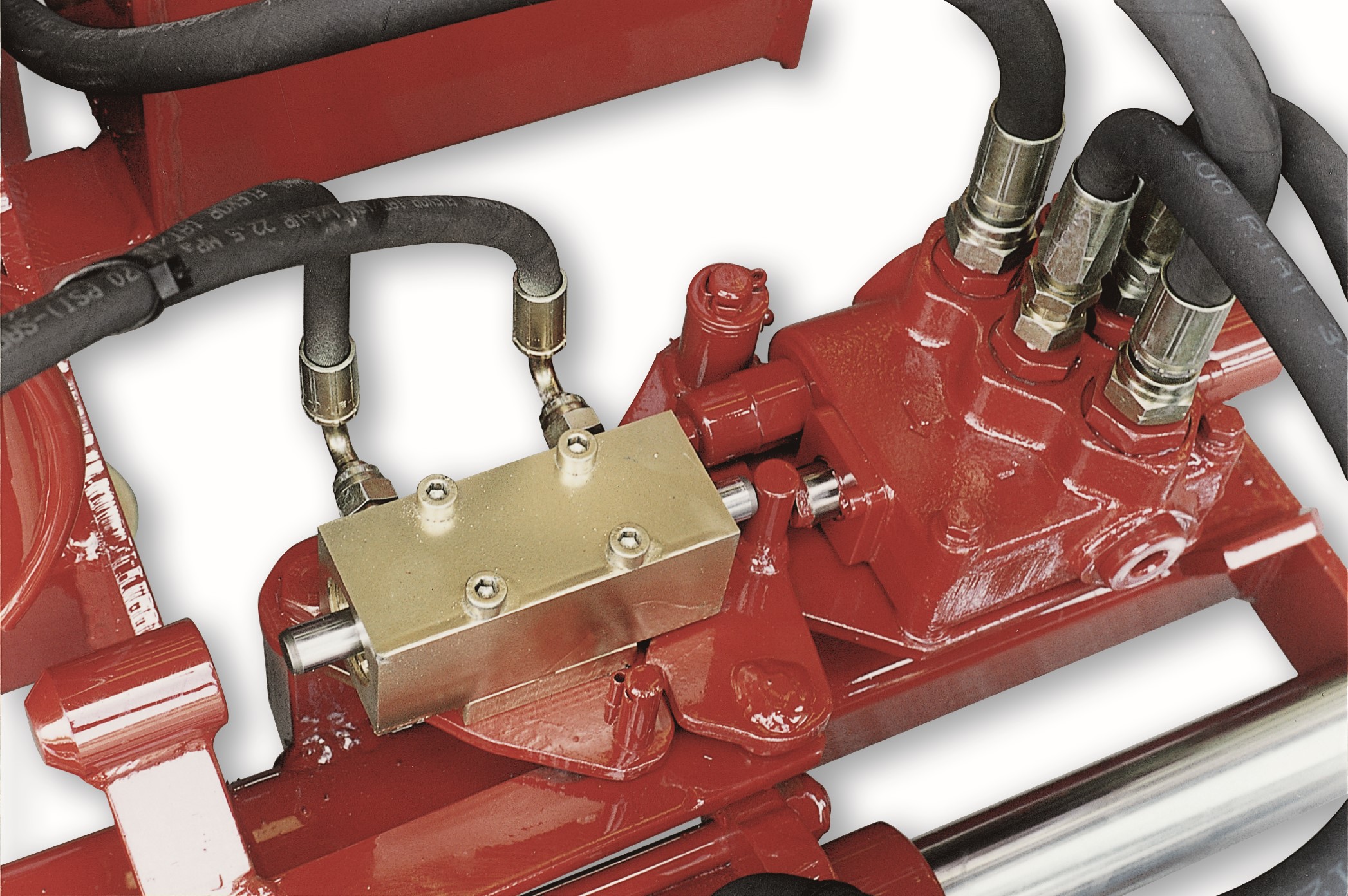

Hydraulic dual-action block to override sensor rod using tractor remote valve.
Hydraulic angle adjustment of tiller head using remote calve from tractor.
