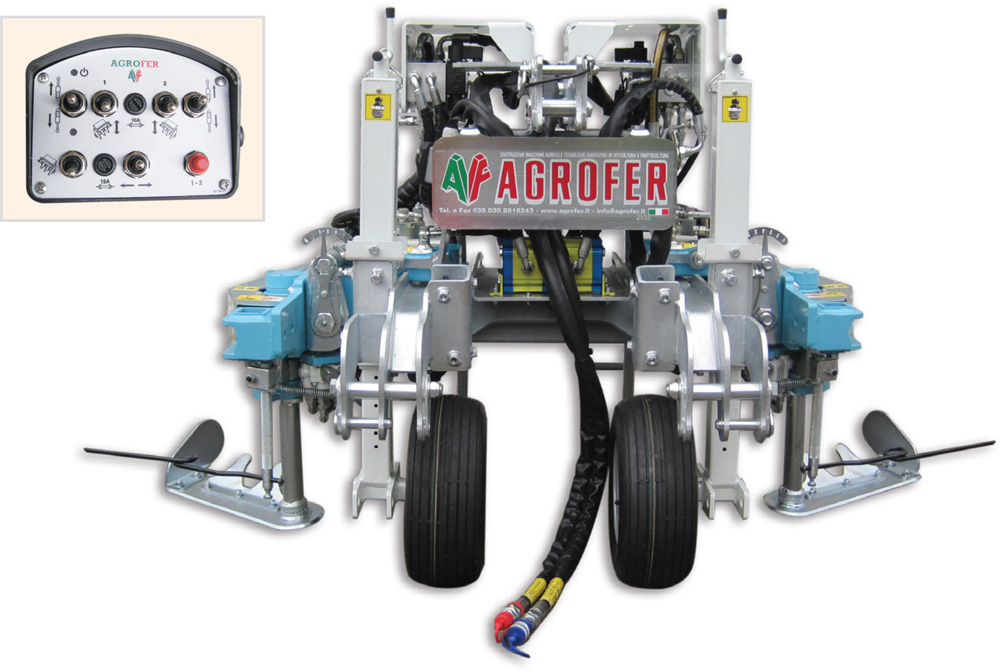

COMBY In-Row Weed Knife
DX-SX
Dual-sided in-row weed knife with reversible 3-pt linkage frame. Unit can operate on a front or rear tractor 3-point linkage. Standard model Utilizes 1 hydraulic remote valve from tractor (min 12 GPM of oil flow) and a free-flow return back to tractor sump. Two pneumatic wheels adjust cutting depth. Fully adjustable hydraulic sensor rods. Optional hydraulic pump and tank units available.
Heavy duty design & construction. Fully adjustable sensor rods. Double-acting hydraulic pistons move weed knife in/out of plant row. Cultivating heads can be angled +/-15° to follow soil contours. 4 model sizes to fit wide range of vineyard/orchard row spacings. Standard control box (12V) controls all operations & implement adjustments.
| Model |
 Weight |
|
<
|
 Tractor Size |
 Working Depth |
 Row Spacing |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| Compact* | 995 |
|
|
50-90 Hp | 3-6" | 5' | ||||
| Piccolo | 1,275 |
|
|
60-90 Hp | 3-6" | 6-8' | ||||
| Medio | 1,495 |
|
|
60-90 Hp | 3-6" | 8-9' | ||||
| Grande | 1,650 |
|
|
70-90 Hp | 3-6" | 9-11' |
Max/Min Width (Fully Closed)
Max/Min Width (Fully Open)
*Note: Available in only rear mounted 3-point attachment
MODEL CONFIGURATIONS
EASY |
TOP |
PREMIUM |
|---|---|---|
| Operates using one (1) hydraulic remote valve from tractor (min 12 GPM of oil flow with free-flow return to tractor). All Unit functions controlled by electrohydraulic control panel. | Factory Installed hydraulic oil pumps (2) and oil tank. Unit does not use any hydraulic oil from tractor. Includes heavy duty PTO driveline. All unit functions controlled by electrohydraulic control panel. | Factory installed hydraulic oil pumps (3), oil tank and oil cooler with fan. Unit does not use any hydraulic oil from tractor. Equipped to handle hydraulic-driven cultivating tools. Includes Heavy duty PTO driveline. All unit functions controlled by electrohydraulic control panel. |
Options for COMBY In-Row Weed Knife
 |
 |

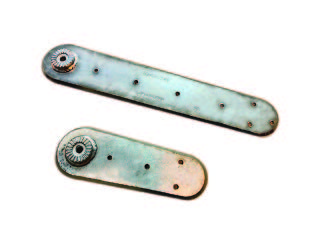

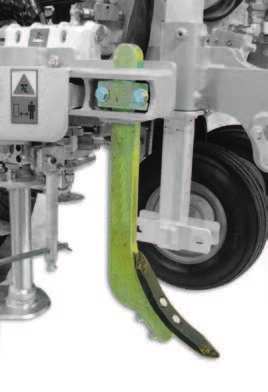

| 16 or 28" Blade | Ripper-Chisel Shank |
Available on all models
 |
 |

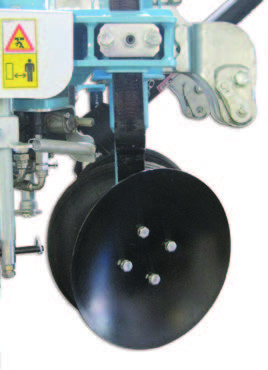

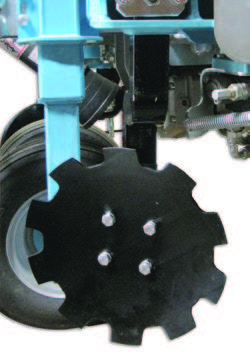

| Culter Wheel (Smooth) | Culter Wheel (Toothed) |
Available on all models
 |
 |

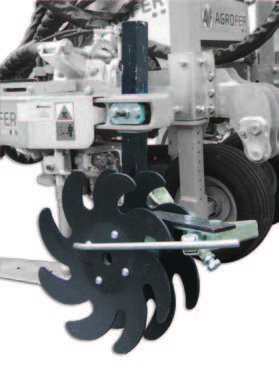

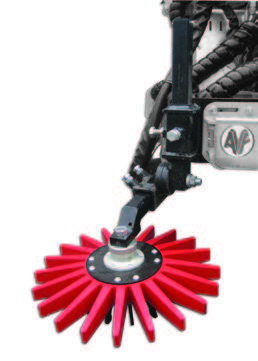

| KULT Weed Star | Rollacker Weeder |
Available on all models
 |
 |
 |

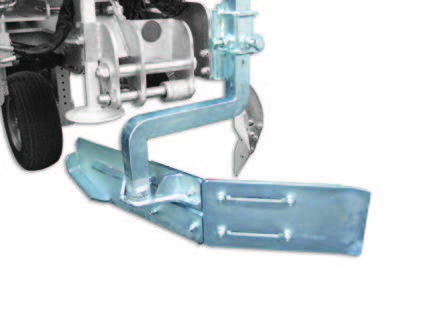

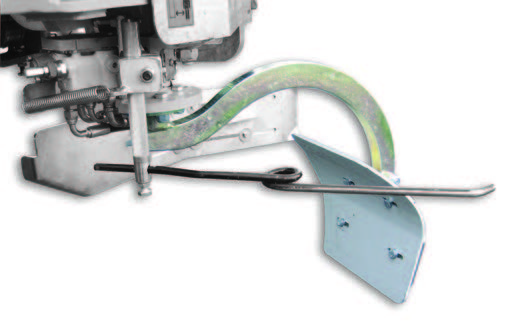

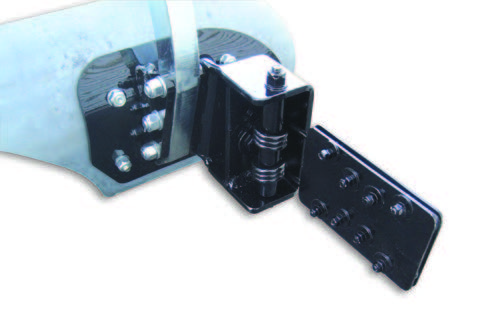

| In-Row Hoe Plow | Rear Soil Deflector | Trunk Cleaning Tool |
Available on all models
 |

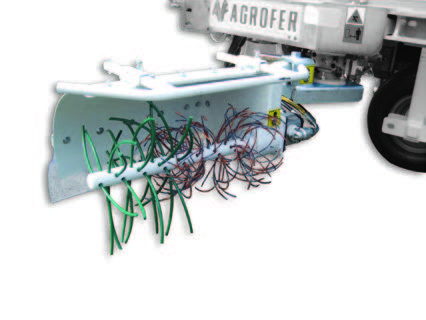

| Weeder Brush |
Premium model only
 |

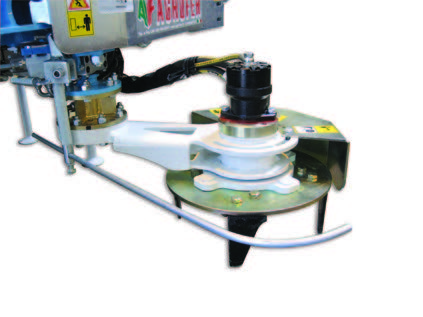

| Rotating Harrow |
Premium model only
 |
| Power Disk Blades |
Premium model only
 |

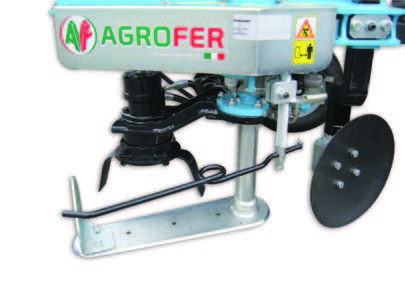

| Mini Power Harrow |
Premium model only
