Spring Tine Cultivator
EV
Spring tine cultivator with adjustable ripper points. Frame is width adjustable (manually) to fit a wide range of row spacings in both vineyards and orchards. Each ripper shank has an independent spring shock to prevent breakage and to shatter the soil structure. Rear rolling cage adjusts cultivating depth up to 16" deep.
Optional wide tip ripper points can open up soil for aeration and additional surface cultivation. Available in 4 model sizes with 5, 7, 9 or 11 shanks. Heavy duty design and construction.
| Model |  Ripper Shanks |
 Weight |
 Tractor Size |
 Min/Max Working |
 Working Depth |
 Row Spacing |
|---|---|---|---|---|---|---|
| EV-500 | 5 | 880 | 50-60 Hp | 42-66" | Up to 16" | 5-6' |
| EV-700 | 7 | 1150 | 60-75 Hp | 47-72" | Up to 16" | 6-8' |
| EV-900 | 9 | 1320 | 70-85 Hp | 55-85" | Up to 16" | 7-9' |
| EV-1100 | 11 | 1650 | 80-95 Hp | 78-110" | Up to 16" | 9-11' |
Features for Spring Tine Cultivator

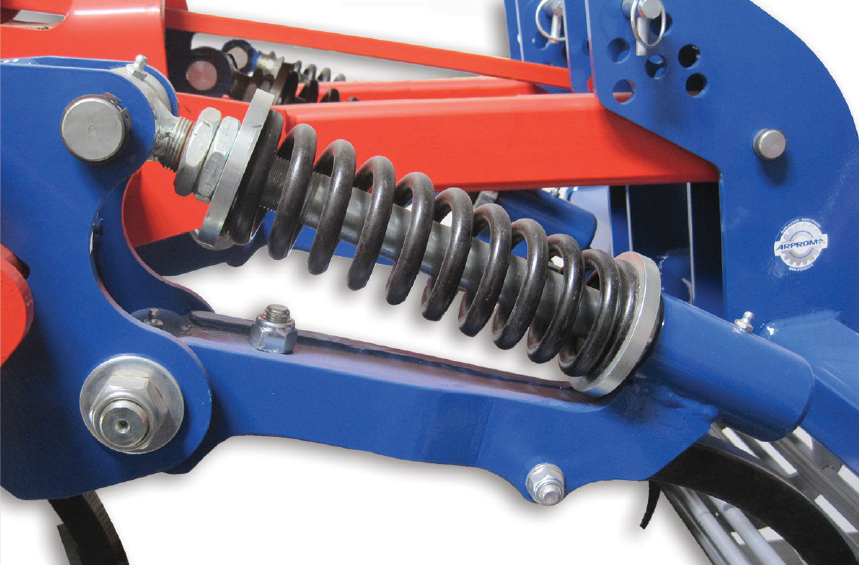

Independent and adjustable spring tension of each ripper shank
Available with narrow reversible ripper tips (standard) or optional wide V-shaped tips

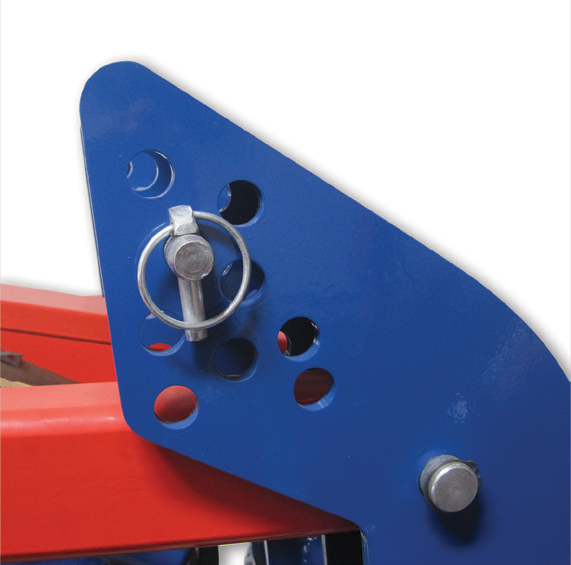

Cultivating depth is regulated using simple pin/hole system on rear roller cage
Rear cage roller width is manually adjustable to work in wide range of row spacings
