In-Row Rotary Tiller
B1

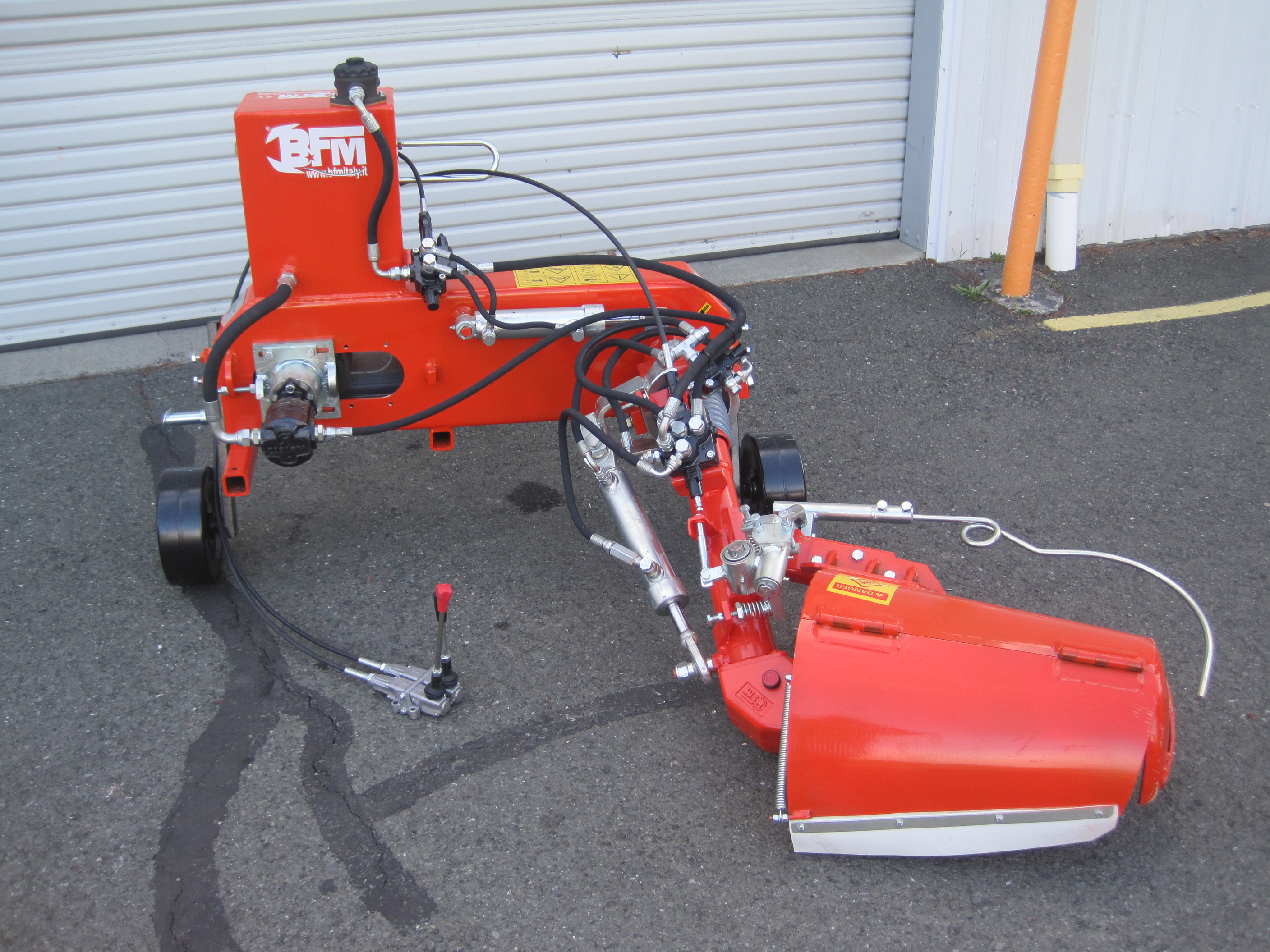

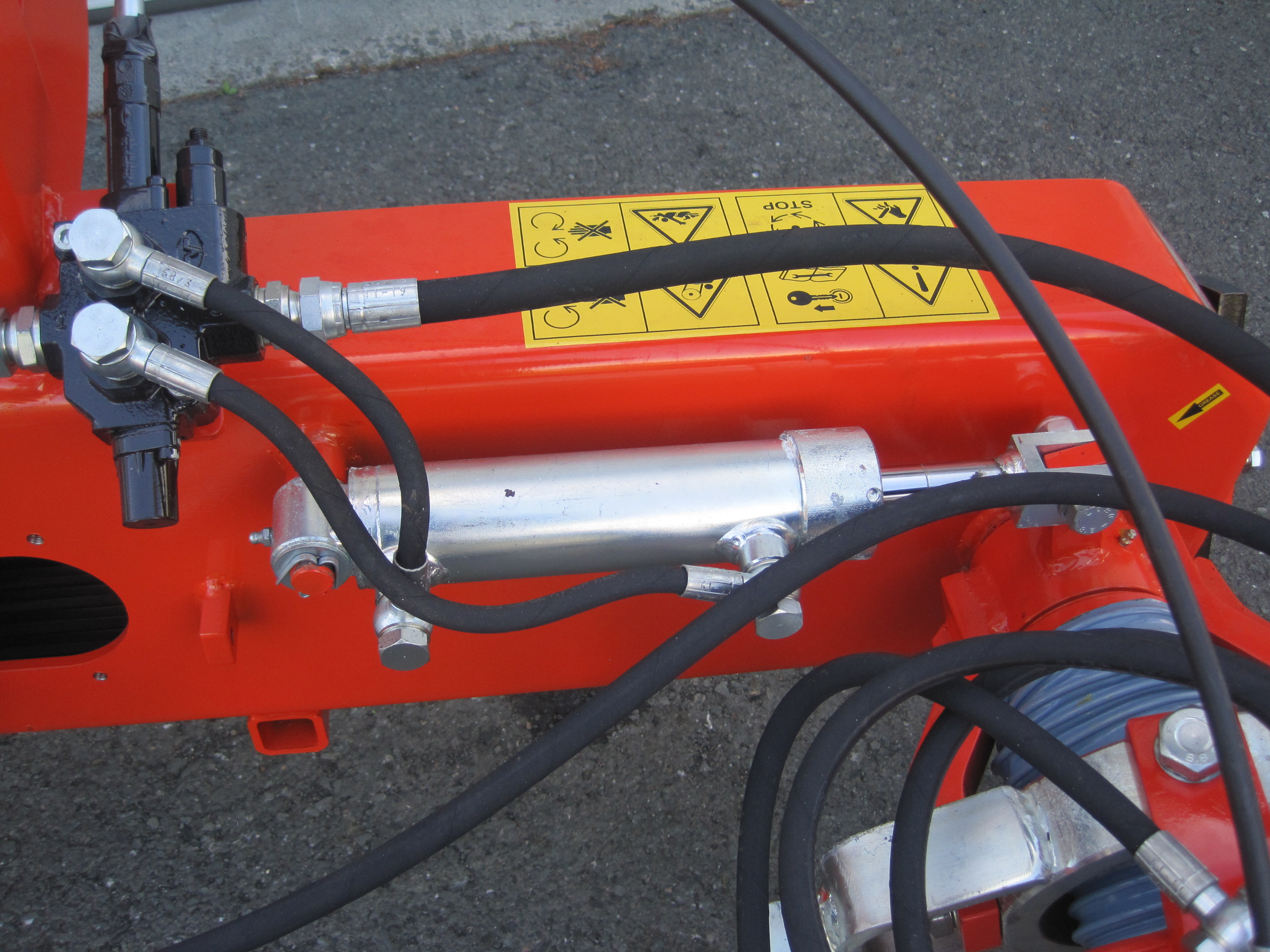

A one-of-a-kind rotary tiller designed to cultivate between plants in the row of a vineyard or orchard. A hydraulic swing-arm displaces the rotary tiller when in contact with a vine or tree trunk. Unit has a self-contained hydraulic system and does not utilize any hydraulic oil from tractor. Ideal for organically farmed vineyards or orchards.
Ideal unit for compact tractors from 18 Hp. Four model sizes to meet any row spacing from 4 feet and up, and plant spacing as narrow as 25 inches. Available in 18" or 24" tiller head sizes. Heavy duty all steel construction ensures many years of reliable and trouble-free service.
| Model |  Cultivating Width |
 Tractor Size |
 Weight |
 Tines |
 Max Reach |
 Row Spacing |
|---|---|---|---|---|---|---|
| B1-TSX-45 (Mini-SX) | 18" | 30-80 Hp | 335 | 9 | 32" | 4-5' |
| B1-TS-45 (Mini) | 18" | 30-80 Hp | 360 | 9 | 37" | 5-6' |
| B1-TM-60 (Medio) | 24" | 30-80 Hp | 420 | 12 | 57" | 6-8' |
| B1-TL-60 (Largo) | 24" | 30-80 Hp | 460 | 12 | 67" | 8-12'+ |
Features for In-Row Rotary Tiller

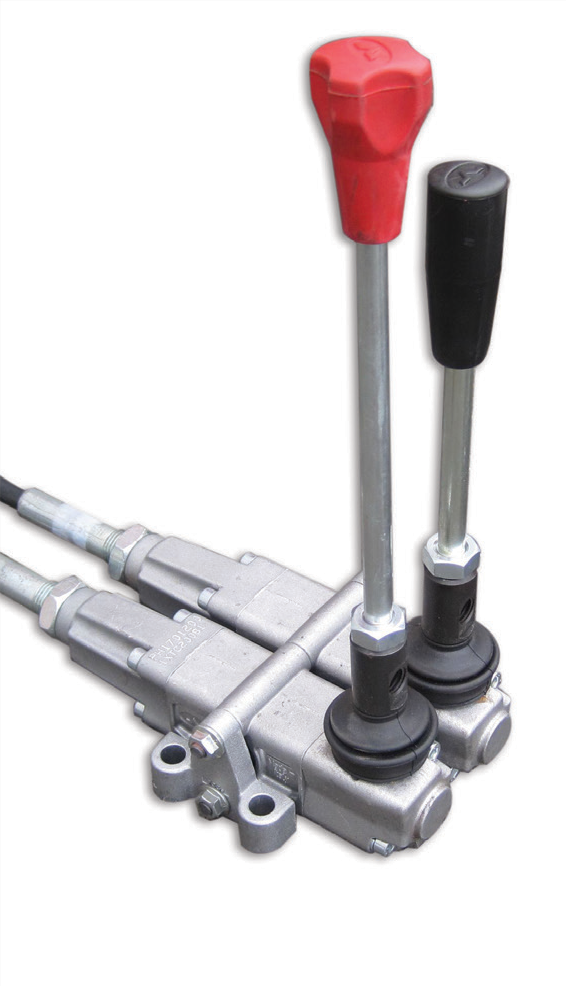

Dual Lever Controls—Cable operated control levers for mounting on tractor workstation.
Fully adjustable sensor rod with sensitivity spring control.

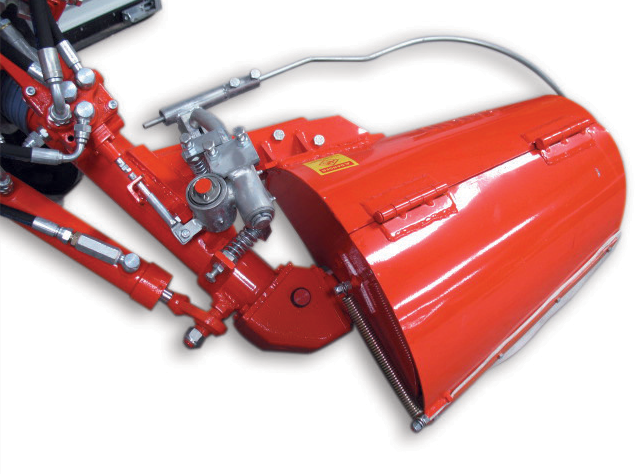

Available with 18” (9 tines) or 24” (12 tines) tiller head sizes.

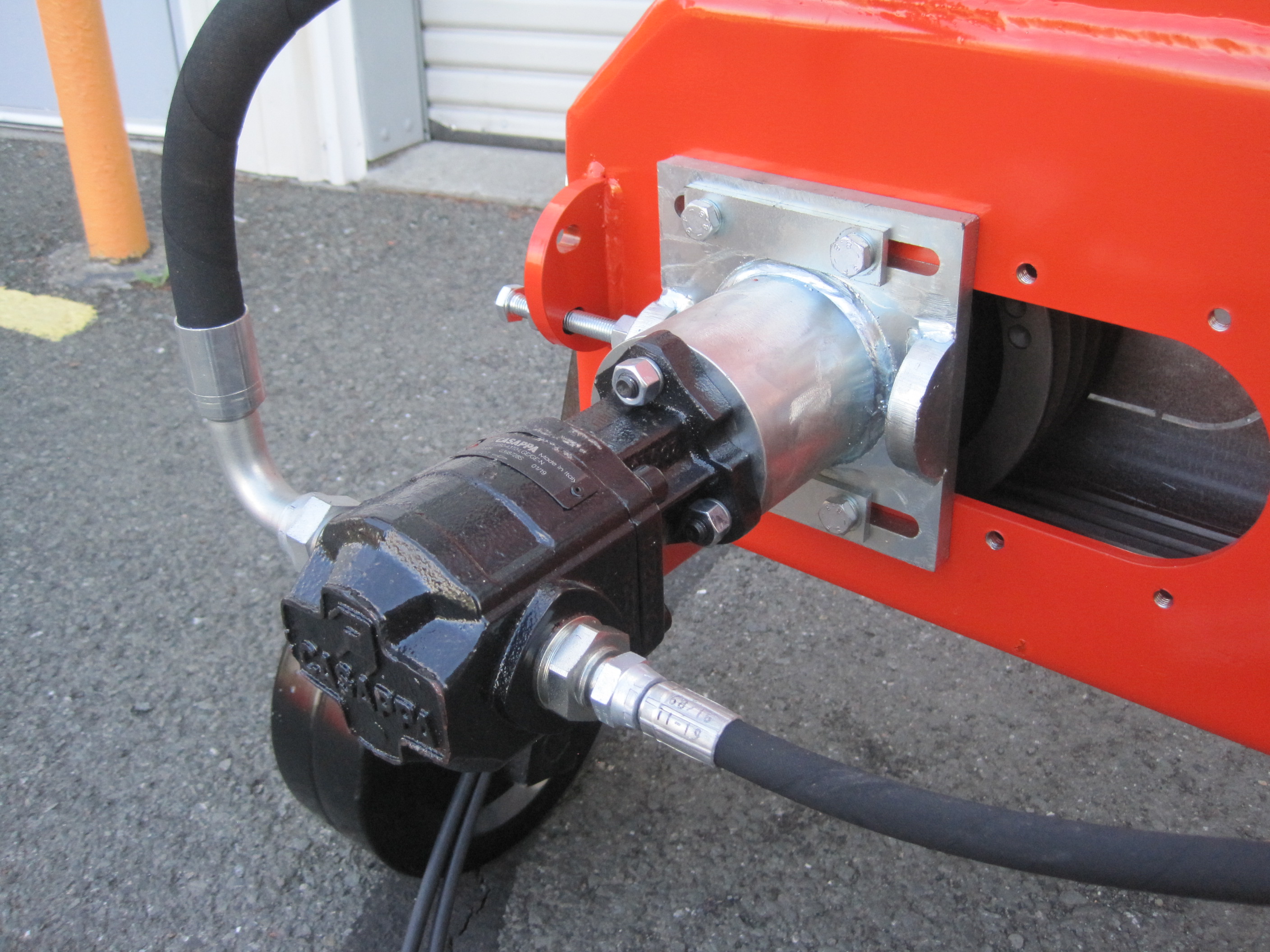

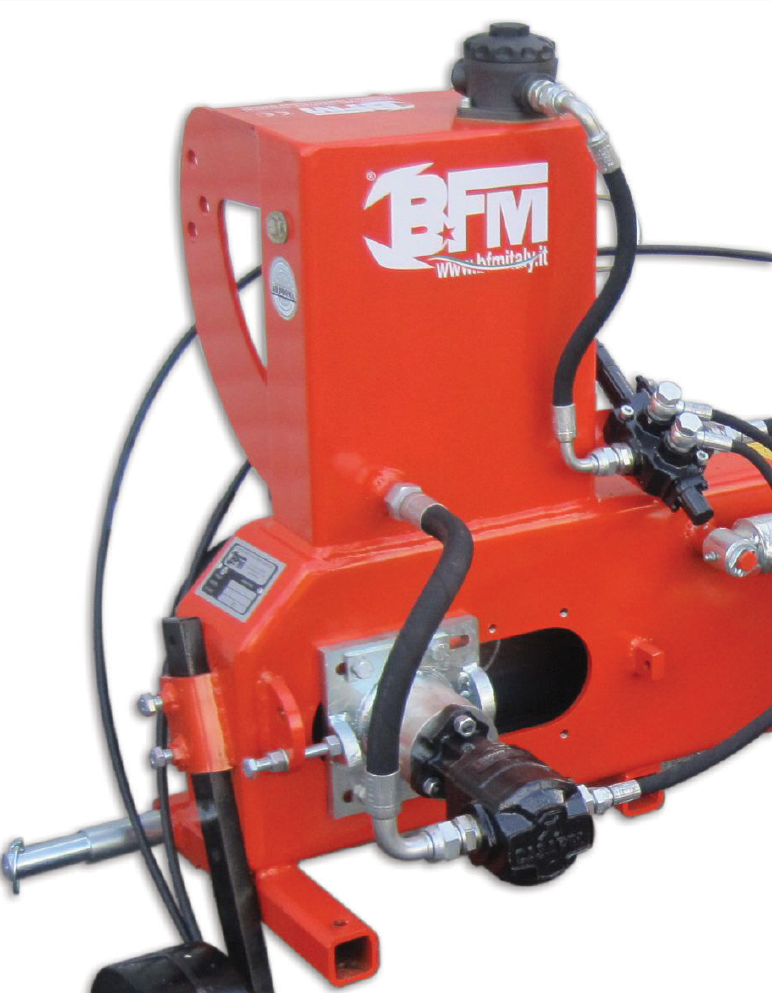

Fully self-contained hydraulic system (does not use any hydraulic oil from tractor).
